ZFM with Water Pump

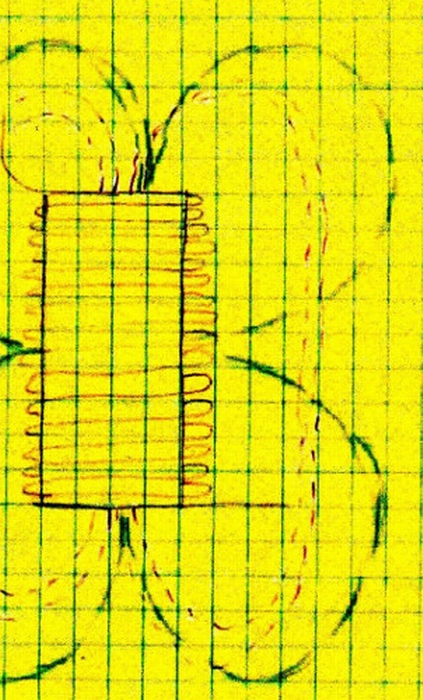

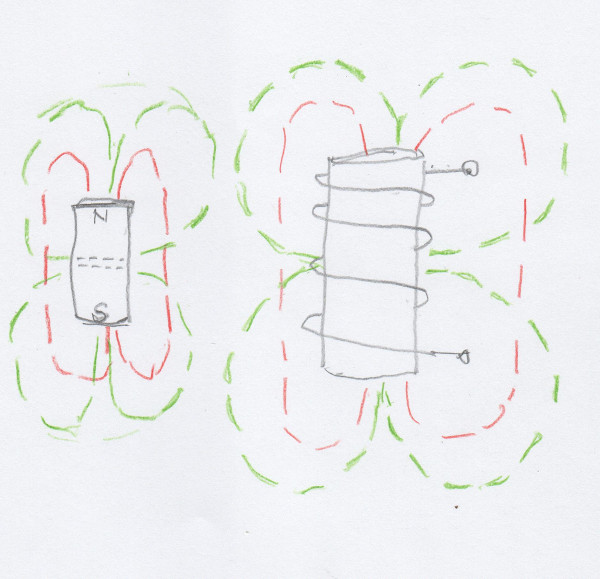

From the very beginning of this replication one of the primary goals was to demonstrate that the ZFM design concept is capable of performing work in the real world - in this instance pumping water. While the ZFM is a capable high RPM machine would it pump water? The overall torque of the YZFM has improved dramatically since the humble beginnings, but is it enough to drive a 4000 RPM pump, albeit that the pump speed is way low in comparison to the normal 10,000-12,000 RPM capabilities.
So to start, the ZFM is being asked to work outside of its normal operational zone, in reality the motor should have been outfitted with a speed reducing belt drive for best efficiency. Well all that was easily available was a 12 volt Harbor Freight utility pump, not a great performance fit, but workable. The ZFM shaft was modified nearly a year ago to accept this pump and recently the pump assembly was united with the ZFM.
Really the expectations were rather low for this test and no earth shattering performance was expected. So the performance figures are not anything great, but they are enough to show that the machine and pump assembly, albeit in a crude state will function and perform real work. That is the point here.
Basic performance data:
70 degree firing duration and 35-40 degree advance
24V at 2270 RPM with 2.16A and 2.3 GPM
36v at 2500 RPM with 2.82A and 3.0 GPM
48v at 3250 RPM and 3.38A and 3.4 GPM
The flow rates were relatively simple to calculate using a 5 gallon Lowes bucket and timing the fill to determine the true flow GPM (The Lowes bucket was filled to the brim and weighed for the capacity calc). The entire assembly was fairly sensitive to alignment and hose loading, but playing around with this gave relatively consistent results.
The highest amperage draw was observed at 48v with a 5 psig back pressure on the pump (using the ball valve to reduce the flow area) - this drove the amperage to 4.8 A and lowered the speed to 1535 RPM. For 36 volts the machine nearly stalled at about the same amperage. Both coils heated up rapidly - not ideal for the plastic housing.
So, while the performance was no better and less than a standard motor/pump assembly, though the ZFM was operated well outside of its speed range - well it did work.
https://www.youtube.com/watch?v=r3fO-IQpPI8
This experiment then ends the YZFM replication project. On the horizon in late fall are the performance efficiency tests (COP) utilizing a Prony brake or similar method. Time for a hiatus for the last couple of months of summer. There are other ZFM fish to fry in the near future.
Thank you for your attention and encouragement,
Yaro
From the very beginning of this replication one of the primary goals was to demonstrate that the ZFM design concept is capable of performing work in the real world - in this instance pumping water. While the ZFM is a capable high RPM machine would it pump water? The overall torque of the YZFM has improved dramatically since the humble beginnings, but is it enough to drive a 4000 RPM pump, albeit that the pump speed is way low in comparison to the normal 10,000-12,000 RPM capabilities.
So to start, the ZFM is being asked to work outside of its normal operational zone, in reality the motor should have been outfitted with a speed reducing belt drive for best efficiency. Well all that was easily available was a 12 volt Harbor Freight utility pump, not a great performance fit, but workable. The ZFM shaft was modified nearly a year ago to accept this pump and recently the pump assembly was united with the ZFM.
Really the expectations were rather low for this test and no earth shattering performance was expected. So the performance figures are not anything great, but they are enough to show that the machine and pump assembly, albeit in a crude state will function and perform real work. That is the point here.
Basic performance data:
70 degree firing duration and 35-40 degree advance
24V at 2270 RPM with 2.16A and 2.3 GPM
36v at 2500 RPM with 2.82A and 3.0 GPM
48v at 3250 RPM and 3.38A and 3.4 GPM
The flow rates were relatively simple to calculate using a 5 gallon Lowes bucket and timing the fill to determine the true flow GPM (The Lowes bucket was filled to the brim and weighed for the capacity calc). The entire assembly was fairly sensitive to alignment and hose loading, but playing around with this gave relatively consistent results.
The highest amperage draw was observed at 48v with a 5 psig back pressure on the pump (using the ball valve to reduce the flow area) - this drove the amperage to 4.8 A and lowered the speed to 1535 RPM. For 36 volts the machine nearly stalled at about the same amperage. Both coils heated up rapidly - not ideal for the plastic housing.
So, while the performance was no better and less than a standard motor/pump assembly, though the ZFM was operated well outside of its speed range - well it did work.
https://www.youtube.com/watch?v=r3fO-IQpPI8
This experiment then ends the YZFM replication project. On the horizon in late fall are the performance efficiency tests (COP) utilizing a Prony brake or similar method. Time for a hiatus for the last couple of months of summer. There are other ZFM fish to fry in the near future.
Thank you for your attention and encouragement,
Yaro
