Maximum coil size?

[Forrest]

http://i1243.photobucket.com/albums/...ps245d857a.jpg

[Prinsloo]

[Forrest]

Hi Prinsloo,

Let me see if I understand you correctly......You have the super magnets alternating nn,ss,nn,ss,nn,ss,nn,ss....like this? My temp setup is nn,nn,nn,nn,nn,nn,nn.....like this.

You have the coils wound with 145 meters (475') each lead?

You are using a spool with 30mm (1.2") dia core?

Really nice construction! Do you have any idea what kind of output you are getting?

Running @ 870 rpm I wounder if slowing the wheel will yeild a larger pulse.

I will be going back to the four lead construction like you have built.

Just on hold right now as I have been working on my windmill. It is a 3kv unit on a 100' tower I bought used. Everything is running like it should but cannot take advantage of the marginal power. I need to get a pulse unit to keep the batteries charging during the very slow wheel speed.

Bud

[Forrest]

Hi All,

Have some new info to share and pictures on the prototype multiple coil SSG. This is an experiment that I needed to prove to myself that one can use multiple coils on the same magnet plane using a super pole magnet SSG.

Where I left off was shortening the coil leads to 132' long each and seeing if I could make them work in unison.....3 coils on the same magnet plane. I started by getting one coil to work and making the wheel rotate. It did not want to rotate and this was the first major hurdle. Prinsloo sparked my imagination by talking about the s/north and I was questioning him about his super magnet setup......was it nn,ss,nn,ss or ss,ss,ss,ss or nn,nn,nn,nn,. Then I thought back to the DVD of John talking about Ed Leedskalnin and his mutiple magnet motor made fron the ford model T generator magnets. This arrangement is nn,ss,nn,ss,nn,ss. Actually the is no south if I remember correctly. It shows magnetism but no south pole.

I thought back to the SSG and thought about the scalar south which is evident. I checked out the super pole wheel and there was no scalar south pole evident as mt setup was nn,nn,nn,nn,nn......etc.

So this got me to thinking about modifying the magnet arrangement. Either I was to take out 7 magnets of the 14 and make them super south or put some neo's inbetween and see what happens. I did not have enough magnets to make the super souths but I had enough neo's. So I taped the small neo's onto the rim in between super pole norths to see if this would work. I rechecked the magnet arragement and the south was now evident in between the super north but somewhat weak due to the distance from the small neo outside diameter path.

I then used one of the coils (8 lead + trigger....132' long) to see if this thing would run itself. I fired it up and lo and behold the wheel kept running under it's own but at a very slow RPM. Cool! Now to see how much voltage it can withstand. At 12 volts it was working fine and I adjusted the pulse with the scope by adjusting the variable resistor. Once the pulse looked good I hooked it up to 24 volts input and poof all eight of the trannies died. Well now I know where the curb is now! I could not make another eight matched transistors so I just used what was left to rebuild the electrical unit fore this coil.

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/protomagnetsetup_zpsdb1984e8.jpg

My next step was to see if I could take the remaining coils, shorten them to 132', and then get them to work as a couple from one trigger pulse. They do work but there is a problem.....there is no resistor between the trigger and the MJL21194 tranny. The trannies will pulse more than once if any resistance is put in between. This is the line as to how big one can make the coils and make them and work. It is actually still too big! One can see this on the backside coil scope shot of the dual coil, setup as follows:

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/protodualcoibackside_zps13140403.jpg

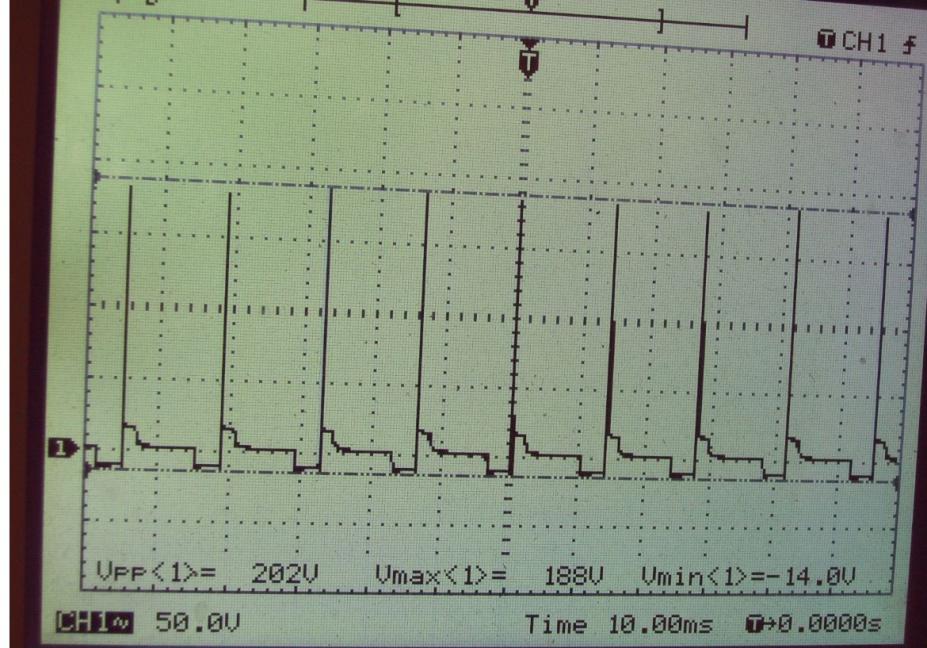

The following is the front side coil scope shot:

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/protodualcoilfrontside_zps43477459.jpg

So now I wanted to see if I could hook all three coils using the same trigger pulse and it will not work as I would need a negative resistor between the trigger and the trannies. The result is too many pulses per magnet pass! So I setup the two outside coils to work as a team using the same trigger pulse and the third one to work as a stand alone.

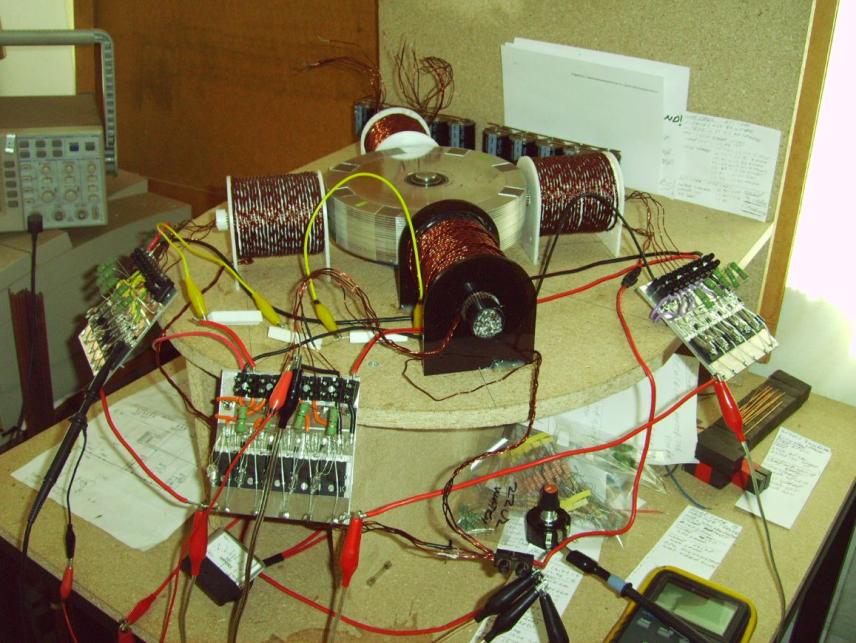

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/prototriplecoiltopview_zps3909b4b6.jpg

Now the unit is running with all three coils using the same super pole magnet pulse all at the same time. The output is phenomenal. Here I am charging a pair of 12 volt batteries in series (24volts) from a 12 volt battery input and the charging rate is beyond anything I have known so far. The input current is between 5-6 amps. I do know that the buss I am using for the output is bare #10 wire and it is getting just barley warm. This tells me the output is somewhere beyound 30 amp as we would know it.

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/proto24voltcharge_zpsf1b7fd9d.jpg

Here are a few more pictures.

This is the stand alone coil. As you can see it is not firing like it should.

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/protosinglecoilscope_zps871fb89d.jpg

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/prototriplecoilisoview_zpsec17370f.jpg

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/prototriplecoilfrontview_zps5813f6fe.jpg

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/protocloseup8transistors_zps59792ce1.jpg

http://i1243.photobucket.com/albums/gg559/ForrestMohrman/proto%20setup%20for%20triple%20coil%20super%20pole/protodummysheet_zpse46cdbf6.jpg

So my next endeavor is now to build a very large energizer. 10+ coils. I have all the details laid out and most of the materials purchased. I also know where the curbs are! I need to finalize the design and to get buiding!

[Tom C]

building it right

after looking at you build I have a few things to chime in on here:

1- the magnets. I assume the magnets are north south thru the thickness. which means you are using the weakest part of the magnet to trigger the coil, even the coil on the end. your magnet orientation is wrong. you will not get good sharp pulses from the trigger coil in your current configuration. and the side coils will be fighting against each other.

the second reason I bring this up is to get something understood, the magnet ONLY switches the core in the monopole, nothing else. it is the electromagnet function of the coil that attracts and repels the magnets, the core is just the switch. the bloch wall in the coil is a function of the coil expanding and collapsing, not the core switching. when the core switches on all the coils it creates a push to each of the magnets as it passes the coil face. you are getting zero work from those side magnets. I can see why you tried to put neos in there, but it makes no sense. either way you have your magnets oriented wrong. t get a strong south you need the magnets close enough together for them to couple. spend some time looking at magnetic flux paths and, look at Johns drawings, and study howard johnsons work with magnetic gates, the radus boot patent and leedskalnins work.

2- 5 to 6 amps primary current for 3 coils regardless of their size is just wrong, you have built a brute force pulse charger, I doubt you will see overunity with this build. ralphs 6 coil was less than 2 amps on the charge input. if anything on your machine is warm, you are wasting energy, transistors, cables, everything should be ambient or lower. the MJL can go negative.

3- your coil orientation makes no sense to me, you want the coil against a north. not fighting a north south.

I say this in all candor, you are chasing a squirrel up a tree with your build. before you get exotic in coil configs and switching, get good charging from one coil in multi transistor form. then study branch circuits and related swithcing functions such as the cap pulser. look at Johns patents. I have watched guys throw thousands of dollars at builds and become frustrated and walk away. I dont want to see that happen to you. I understand your research but you are going to be frustrated.

at 130 feet your are close to the 10 coil wire length on John's machine. you dont need those huge magnets to switch your coils. they will be on way too long.

[Tom C]

building it right

after looking at you build I have a few things to chime in on here:

1- the magnets. I assume the magnets are north south thru the thickness. which means you are using the weakest part of the magnet to trigger the coil, even the coil on the end. your magnet orientation is wrong. you will not get good sharp pulses from the trigger coil in your current configuration. and the side coils will be fighting against each other.

the second reason I bring this up is to get something understood, the magnet ONLY switches the core in the monopole, nothing else. it is the electromagnet function of the coil that attracts and repels the magnets, the core is just the switch. the bloch wall in the coil is a function of the coil expanding and collapsing, not the core switching. when the core switches on all the coils it creates a push to each of the magnets as it passes the coil face. you are getting zero work from those side magnets. I can see why you tried to put neos in there, but it makes no sense. either way you have your magnets oriented wrong. t get a strong south you need the magnets close enough together for them to couple. spend some time looking at magnetic flux paths and, look at Johns drawings, and study howard johnsons work with magnetic gates, the radus boot patent and leedskalnins work.

2- 5 to 6 amps primary current for 3 coils regardless of their size is just wrong, you have built a brute force pulse charger, I doubt you will see overunity with this build. ralphs 6 coil was less than 2 amps on the charge input. if anything on your machine is warm, you are wasting energy, transistors, cables, everything should be ambient or lower. the MJL can go negative.

3- your coil orientation makes no sense to me, you want the coil against a north. not fighting a north south.

I say this in all candor, you are chasing a squirrel up a tree with your build. before you get exotic in coil configs and switching, get good charging from one coil in multi transistor form. then study branch circuits and related swithcing functions such as the cap pulser. look at Johns patents. I have watched guys throw thousands of dollars at builds and become frustrated and walk away. I dont want to see that happen to you. I understand your research but you are going to be frustrated.

at 130 feet your are close to the 10 coil wire length on John's machine. you dont need those huge magnets to switch your coils. they will be on way too long.

[John_Bedini]

@ All,
First let answer a few questions, Magnetic saturation is not a problem if your using the correct magnets.
The next thing is the current in the machine must be set to minimum. This machine must be set in the top portion of the bell curve as has been discussed before. The SG is based on the 1984 book without the DC Motor or the energizer attached. This is all in one machine. the dc motor part is pulsed from the magnets the recovery is a spike of high potential to the secondary battery. The two batteries are split in the circuit to make it easy to tune. If you want to just use one battery you must use capacitor discharge at double the battery voltage and the motor section must be in the off position when the discharge occurs. You can find many was to do this type of energizer. The most important thing is to not waste much energy in the primary circuits unless you have designed the machine to run a different way and then your on your own. The shaft power of the machine is around 23% so do something with it or add it into your COP equation as the energy must be counted, run a fan. The first toy you ever had than captures the wasted energy and gives mechanical power to do something with along with charging another battery. If the machine is balanced correctly your COP will be 1 or better. You must count everything in the system. If your looking with current meters you will see the primary but the secondary is much different to measure as not much current is found. The Battery does not care what charges it as long as the potential is found at it's terminals. The machine in the Patent was built to charge batteries as it was always a battery charger based on Tom Bearden's theories on battery back popping with a high potential. When this is done the battery changes and it becomes very hard to charge with a conventional charger, this is seen by the heat in the battery. The Energizer is equivalent to a magneto charging system. Before you attempt to do this work you must study what Magnetos do to batteries and how they charge batteries. If your looking for current with the SG machine it's not designed to do that. Watch The video I post. Look on Tom Bearden's web site on the simple Free Energy Motor http://www.cheniere.org/books/part4/s40.htm

[John_Bedini]

[Branch Gordon]

I see a waffle maker in there! Does the Monopole toast up some good waffles too?

Joking...

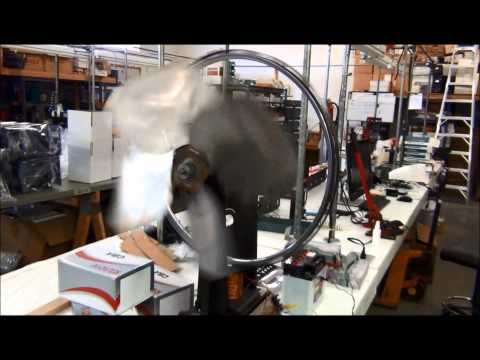

In This Video I’m showing the original SG Monopole Energizer.
Just giving some tips for the group in what to look for.
This is discussed on the Energy Science Forum

[LesK]

Very Nice John!
I liked the comparator circuit... looks way better than mine!
So when are these machines going to be available?

Les

[John_Bedini]

I won’t do anything until the three people that are coming here agree that the machine follows the Patent and charges batteries as I have always said. People should not be putting them together without the correct components and the correct circuit board. Everything should be in the kit ready to run with just some minor tuning. I’m still working on the comparator circuit for this machine. I want to make sure that everybody understands what the machine was and what it is used for in the experimental research I did with Tom Bearden in the 80’s. The monopole goes back to 1971 and was not built by me until 1972 after my discharge from the Military Service. I worked on this before that but could not do anything with it at that time, any such projects where I was.

[LesK]

As the concepts become more and more clear the real beauty of it begins to shine. You have said many times people just don't know what this machine is. But I think even fewer really understand what you have put into it over a lifetime.


Les

[Faraday88]

@ All,
First let answer a few questions, Magnetic saturation is not a problem if your using the correct magnets.
The next thing is the current in the machine must be set to minimum. This machine must be set in the top portion of the bell curve as has been discussed before. The SG is based on the 1984 book without the DC Motor or the energizer attached. This is all in one machine. the dc motor part is pulsed from the magnets the recovery is a spike of high potential to the secondary battery. The two batteries are split in the circuit to make it easy to tune. If you want to just use one battery you must use capacitor discharge at double the battery voltage and the motor section must be in the off position when the discharge occurs. You can find many was to do this type of energizer. The most important thing is to not waste much energy in the primary circuits unless you have designed the machine to run a different way and then your on your own. The shaft power of the machine is around 23% so do something with it or add it into your COP equation as the energy must be counted, run a fan. The first toy you ever had than captures the wasted energy and gives mechanical power to do something with along with charging another battery. If the machine is balanced correctly your COP will be 1 or better. You must count everything in the system. If your looking with current meters you will see the primary but the secondary is much different to measure as not much current is found. The Battery does not care what charges it as long as the potential is found at it's terminals. The machine in the Patent was built to charge batteries as it was always a battery charger based on Tom Bearden's theories on battery back popping with a high potential. When this is done the battery changes and it becomes very hard to charge with a conventional charger, this is seen by the heat in the battery. The Energizer is equivalent to a magneto charging system. Before you attempt to do this work you must study what Magnetos do to batteries and how they charge batteries. If your looking for current with the SG machine it's not designed to do that. Watch The video I post. Look on Tom Bearden's web site on the simple Free Energy Motor Part 4

Hi John,
I fully agree on your suggestion of understanding the Megneto first...i did.
Best Regards,
Faraday88.

[Forrest]

Hi All,

Everyone!!!! please do not take anything I am about to say personally or let it hurt your feelings. I want to state my position and how I see things. Where I am going and what I am doing.

I come with a mechanical... self made man background with very little electrical engineering. The limit of my electircl knowlege is from power wiring and machine controls. My specialty is highly advanced tool and die engineering and construction. One of the best on the planet.....thanks to GOD.
I have 9.5 fingers left and several battle scars to show for my time on this earth.

I am a do'er and not a talker!

I considered purchasing instead of building day one from Rick Friedmann. Thank god that never came to pass!

I got on board Chritmas time 2011. I built one ssg from Rick Friedmann's kit. It worked barely! It did not charge batteries like it should have. I asked for help but got none on the yahoo forum! Little did I know that the coil was not to John's specification. Little did I know that Rick and Energenx were not on good terms. I later figured the coil issue out on my own by doing my own coil winding per the specs. This involvement in doing my own work got me very interested in knowing why everything about how this machine ticks and why!

I built another ssg with non linear magnet spacing just because I wanted to. I tested both units side by side with identical charge and run batteries. I did 50+ runs and documented the test data. I even went so far as to compare the two machines and their test data to show that the nonlinear magnet spacing has advantages in charging......Peter L agrees and we have spoken about this several times.

I later wanted to know more about larger coils and multiple strand power windings. There is no info here! I was on my own! I wound larger coils with aluminum wire and larger cores. Forget aluminum!
I wound 4 lead, 7 lead, and 8 lead coils with varying lengths just to find out where the limits are. Why can't I build a coil 30' in dia and 40' long with a 24" core? Where is the limit?

At this juncture either some know and are not divulging the info or just plain do not know. My goal at this time is to find that limit. I think I have it thru trial and error. I am never happy sitting on the side lines waiting for someone to give out the answers! I will be giving it hell 24/7 until I find out why or someone comes up and stops me.

Tom you are that person who has stopped me. Thank you!

John has also come to the table to replant the seed.....I get it. Thanks John!! I know first hand how valuable your time is to you. Thanks for your time! It means a lot to us all when you jump in. After all you are......... THE MAN! Great video above by the way! One of the best so far!

I have gone and found the limit of coil build size and why. Yes Tom the coils do heat up real well to the point of cannot touch them. My background might not always allow me to say things in a manner that may make sence to you but it is how I perceive it when I write. Every one believe me, your words always stick with me. I value every bit of info and try to digest it to further my education.

One of the things that has made my plant so successful is to prototype everything we do before any construction takes place. I am also doing this very same thing here. Prototyping everything! I have learned more from failure than I have by succeeding. I have advance a long way in a short time but I now realize how much more there is to learn.

This particular website has been one of the best learning tools I have ever been associated with.

Where do I go from here.....keep pluggin along. Going back down the ladder for a while!

Bud

[Tom C]

Bud,

build a single coil multi filar SG 1 trigger 4 power strands. match your trannies diodes and resistors. 1.2 ohm coil resistance. use 18 awg wire. use scalar north magnets for faster switching. charge batteries


Tom C
