Sg pcb

[Joster]

Hi All,

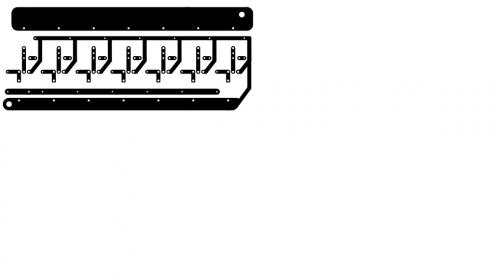

Wanted to share this PCB layout for all. Stay tuned for a Comparator Cap Pulser Board!

Cheers,

Joster

[Joster]

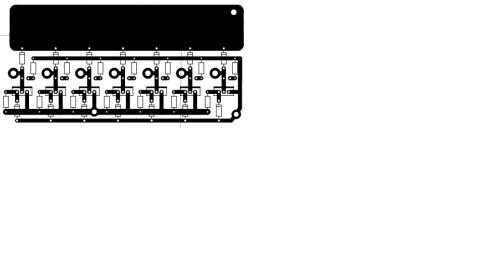

Here is the actual final board...I am really happy with it now. It has a very large copper trace on the radiant output, screw terminals for coil, output, ground, and trigger. Also it is designed for T-03 devices whiich are a lot cheaper. Just wanted to share.

This youtube vid shows how to use the "photo-resist" method of making boards and is actually really easy. The hardest part is just setting everything up to do it.

http://youtu.be/tWnfnt2rNO0

[Joster]

helps if I attach the file
