The Fallacy of Conductors

When electro-magnetic energy is conveyed from one point in space to another point in space a closed loop is required to connect the point of generation with the point of utilization. This closed loop is called the electric circuit and consists of a boundary formed by what have become known as electric conductors. This boundary encloses a definite quantity of space.

When electro-magnetic energy flows through the space enclosed by the electric circuit phenomena take place inside the circuit material as well as the space outside this material.

Within the circuit conductor material, during the passage of electro-magnetic energy, this energy is continuously being consumed within the molecular space and converted into thermo-dynamic energy (heat). This may be represented by the passing electro-magnetic wave dragging into the electric circuit material. This drag is analogous to frictional losses and is called the resistance of the electric circuit, R.

In the space outside the circuit conductor material, during the passage of electro-magnetic energy, a condition of aetheric stress exists, which is called the electric field of the electric circuit. The energy contained by the electric field is continuously being transferred through this space from the point of generation which supplies energy to the electric field to the point of utilization which abstracts energy from the electric field.

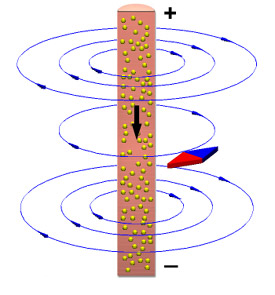

The electric field of the circuit exerts physical magnetic and dielectric actions. The magnetic action is orientated parallel to the surface of the conductor material (in its immediate vicinity). That is, a needle shaped magnetic body tends to set itself in a direction parallel to the surface of the conductor material.

The dielectric action is orientated perpendicular to the surface of the conductor material (in its immediate vicinity). That is, a needle shaped dielectric body tends to set itself in a direction perpendicular to the surface of the conductor material. Thus, the electric field of the circuit, over which passes the flow of electro-magnetic energy, has three fundamental axes which are at right angles with each other:

The dielectric axis, perpendicular to the conductor surface,

The magnetic axis, parallel to the conductor surface,

The electro-magnetic axis, co-axial with the direction of the electric circuit.

The space outside of the conductor material, bounded by the electric circuit, has the property of propagating a wavefront of light at a definite velocity, C. This velocity is a characteristic property of the aether in which the electric circuit exists. The inverse square of this velocity is called the capacitance of the electric circuit.

C = 1/c² (4 10^-9 pi^-1) Farads The capacitance is a measure of the ability to store energy in the dielectric field of induction, of the electric circuit.

The quantity of space enclosed by the bounding electric circuit is proportional to the total length of the electric circuit, l1, multiplied by the distance between the bounding conductors, l2,
l₁ l₂ = l₀² (centimetre)² and has the dimensions of an area. This area in square centimetres defines what is called the inductance of the electric circuit.
l₀² = L 4 10^-9 pi Henrys The inductance is a measure of the ability to store energy in the magnetic field of induction of the electric circuit.

Together, the capacitance and the inductance representing the dielectric and magnetic fields of induction of the electric circuit, serve as a measure of the propagation characteristics of the electric circuit for the transmission of electro-magnetic energy.
- LC = t₀² : natural period
- L/C = Z₀² : natural impedance 2.

Eric Dollard
